En enero
del 2012 Iglesis Prat Arquitectos nos solicito la consultoría de un proyecto a su
cargo, la cubierta de un Velódromo ubicado
en Santiago de Chile por encargo del IND.
Este proyecto fue planteado inicialmente con una secuencia de vigas de sección
ojival y cubierta por un material rígido. El peso excesivo de la cubierta y la posibilidad
de usar un material alternativo convenció a los proyectistas de adaptar la propuesta existente por una de
membrana textil.
Del análisis
arquitectónico que realizamos, el primer inconveniente fue la alta probabilidad
de empozamiento de lluvia y nieve, debido a que la pendiente del techo era
insuficiente para un material flexible como la membrana. En consecuencia se
opto por presentar un diseño alternativo que se adapte a las exigencias del
nuevo material y del proyecto en si.

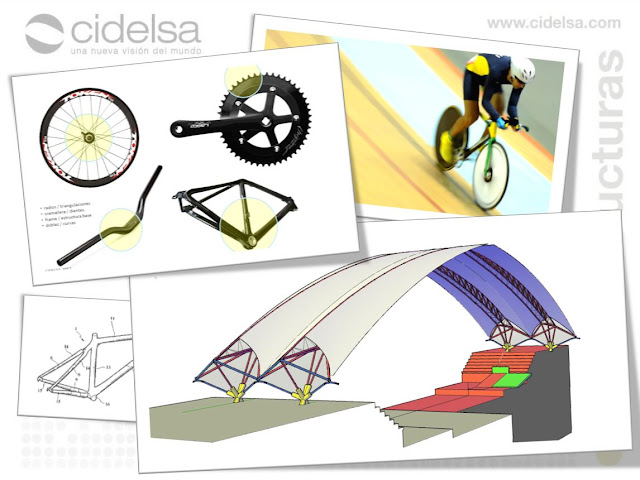

Tomamos en
cuenta estos puntos básicos y buscamos también las referencias formales para el diseño. Se diseño en consecuencia una estructura
mas elevada y esbelta que sirvió de marco para la superficie de doble curvatura.
El diagrama que presentamos de este primer planteamiento sirvió como base para
el desarrollo final del proyecto.
Iglesis
Prat incluyo en al propuesta un voladizo perimetral y una secuencia de columnas
de hormigón armado para el soporte de las estructuras metálicas. Adaptamos la
cubierta y se trabajo en varias alternativas para el perímetro.
Pasado el
tiempo se definió el perímetro en plancha, dejando únicamente la cubierta
central en membrana textil. CIDELSA apoyó también en el desarrollo del sistema
de sujeción de la membrana tensada, el drenaje de lluvia y finalmente el diseño
estructural. Analizamos la superficie con el software EASY y enviamos las
cargas que actúan sobre la estructura para que el responsable del diseño
estructural pueda dimensionar la estructura portante.
Finalmente
en Junio del 2012 el proyecto de la cubierta estaba resuelto y se presento a
licitación pública.
ODESUR VELODROME
In January 2012 Iglesis Prat Architects asked
us for a consultancy of a project they were in charge, a cover of a velodrome
located in Santiago de Chile. This project was initially designed as a sequence
of ogival section beams and covered by a rigid material. The excessive weight
of the metal structure and the possibility to use an alternative material
convinced the designers to adapt the existing proposal into a textile membrane
roof.
After our architectural analysis, the first
problem was the high likelihood of rain and snow ponding, because the slope of
the roof was insufficient for a flexible membrane. Consequently we decided to
present an alternative design that meets the requirements of the new material
and the project itself.
We considered these basic points and also
seek formal references for designing. In consequence we design a more elevated
and slender structure that provided the framework for the double-curved
surface. The diagram presented in this first approach was the basis for the
development of the project.
Iglesis Prat included in the proposed a different
perimeter and a sequence of reinforced concrete columns to support metal
structures. We adapted the design and work in various alternatives for the
perimeter.
After a while they defined a rigid material
for the perimeter, leaving only the central cover with a textile membrane.
Cidelsa also supported the development of the holding system for the tensioned
membrane, also the drainage of rain and finally the structural design. We
analyzed the surface with the EASY software and send to the engineering team
the acting loads on the structure for the structural design.
Finally in June 2012 the project was completed
and submitted to public contest for the construction.
